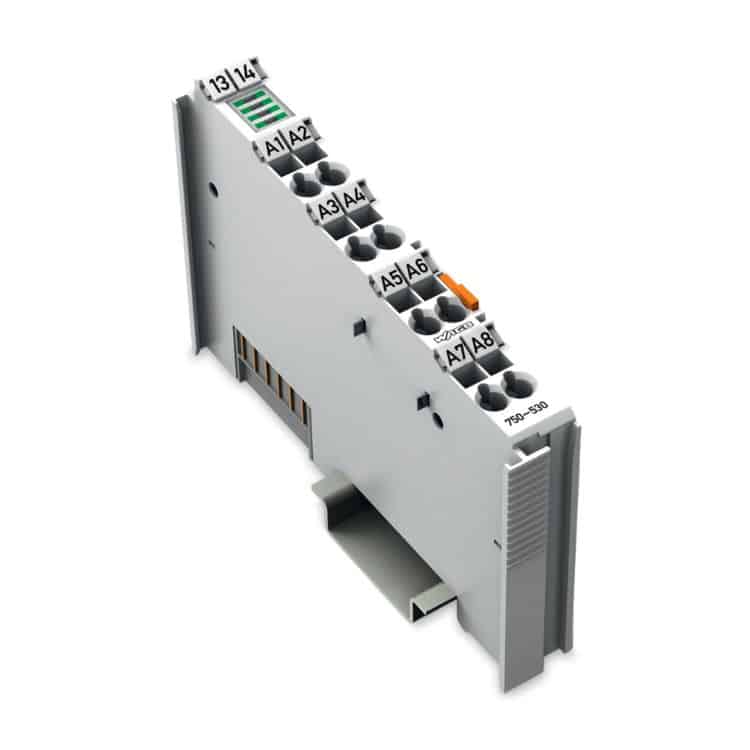

Wago 750-530 8 Channel Digital Output
Wago 750-530 8 Channel Digital Output
Product Description :
-
An 8-Channel Digital Output module is a high-performance industrial automation device designed to control and drive multiple output devices such as relays, solenoids, actuators, and indicators simultaneously.
-
It converts digital signals from a PLC or controller into actionable outputs, enabling precise and reliable operation of industrial machinery, automation systems, and process control equipment.
-
Manufactured with high-quality electronic components and rugged housing, 8-channel digital output modules provide fast switching, electrical isolation, and protection against overloads and short circuits, ensuring long-term durability and operational safety.
-
They are widely used in manufacturing automation, energy systems, robotics, and industrial control panels.
Product Specification :
- Power consumption (internal): 25 mA
- Voltage via power contacts: DC 24 V (-25% … +30%)
- Load type: ohmic, inductive, lamp load
- Max. Switching frequency 2 kHz
- Max. output current: 0.5 A short-circuit proof
- Absorbable energy W max. (one-time shutoff): 0.9 J; L max = 2 x W max/I2
- Typical power consumption (field side): 15 mA/module + load
- Potential separation: 500-V system/supply
- Internal data width: 8 bit
- Connection technology: CAGE CLAMP®
- Cross-sections: 0.08 mm² … 2.5 mm²/AWG 28 … 14
- Insulation stripping lengths: series 750/753 8 … 9 mm/0.33 in 9 … 10 mm/0.37 in
- Width: 12 mm
- Weight: 48.5Â g
