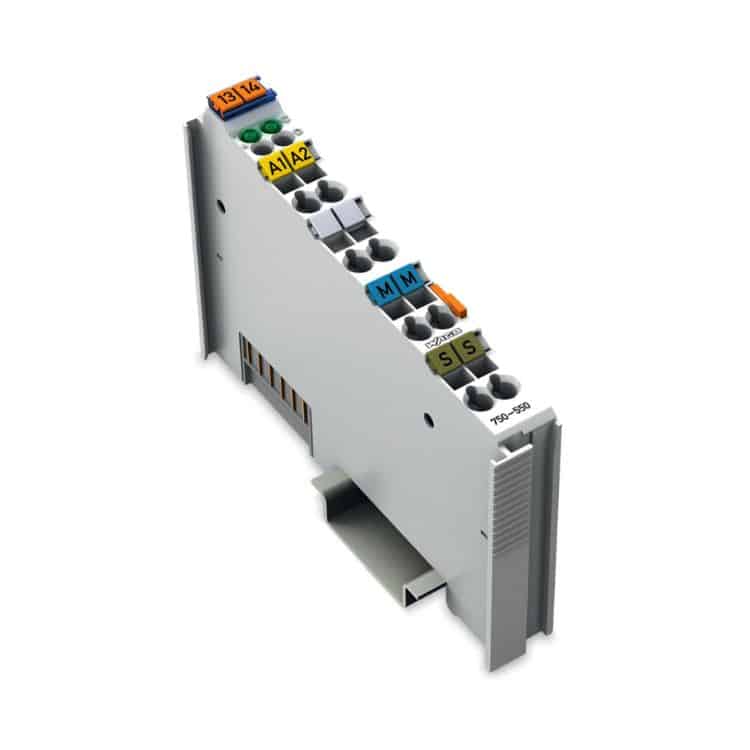

Wago 750-550 2 Channel Analog Output
Wago 750-550 2 Channel Analog Output
Product Description :
-
A 2-Channel Analog Output module is an essential industrial automation device designed to convert digital signals from a controller or PLC into precise analog signals, such as 4–20 mA or 0–10 V, to control actuators, valves, motors, and other field devices.
-
It enables accurate process control, smooth operation, and reliable system performance across industrial, manufacturing, and automation applications.
-
Built with high-quality electronic components and robust industrial-grade housing, 2-channel analog output modules offer high-resolution signal conversion, electrical isolation, and protection against voltage spikes and interference.
-
They are widely used in process control systems, HVAC, industrial automation, energy management, and manufacturing equipment.
Product Specification :
| Depth: | 69.8 mm / 2.748 inch |
|---|---|
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 500Â V system/field |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of analog outputs: | 2 |
| Output type: | Analog |
| Protection type: | IP20 |
| Signal type: | Voltage |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Total number of channels (module): | 2 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 63.000 g |
| Width: | 12 mm / 0.472 inch |
