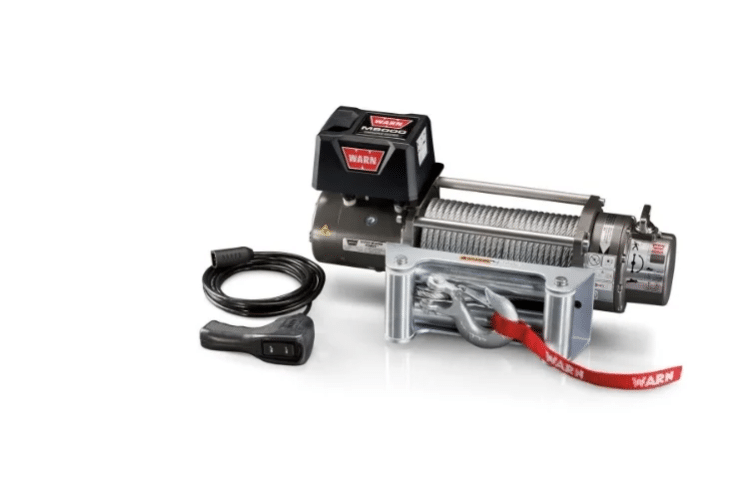

Warn 26502 Electric Winch
Warn 26502 Electric Winch
Product Description :
- It is a mechanical device powered by electricity that is used for pulling, lifting, or towing heavy loads. It works by using a motor to wind a cable or rope around a drum, allowing it to move heavy objects, pull vehicles, or lift cargo in various applications.
- The electric motor makes operation easier compared to manual winches, as it requires less physical effort from the operator.
Product Specification :
| Type | Electric |
| Mount Type | Vehicle Mounted |
| Recommended Use | Vehicle Recovery |
| Voltage | 12 Volt |
| Motor Horsepower | 4.8 Horsepower |
| Electrical Control Type | Contactors |
| Motor Type | Series Wound |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 216:1 |
| Free Spooling | Yes |
| Brake Type | Mechanical Cone |
| Line Diameter (IN) | 5/16 Inch |
| Line Length (FT) | 100 Feet |
| Line Material | Steel |
| Fairlead Type | Roller |
| Conforms To J706 Standards | No |
| Remote Type | Handheld Remote Switch |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Gray |
