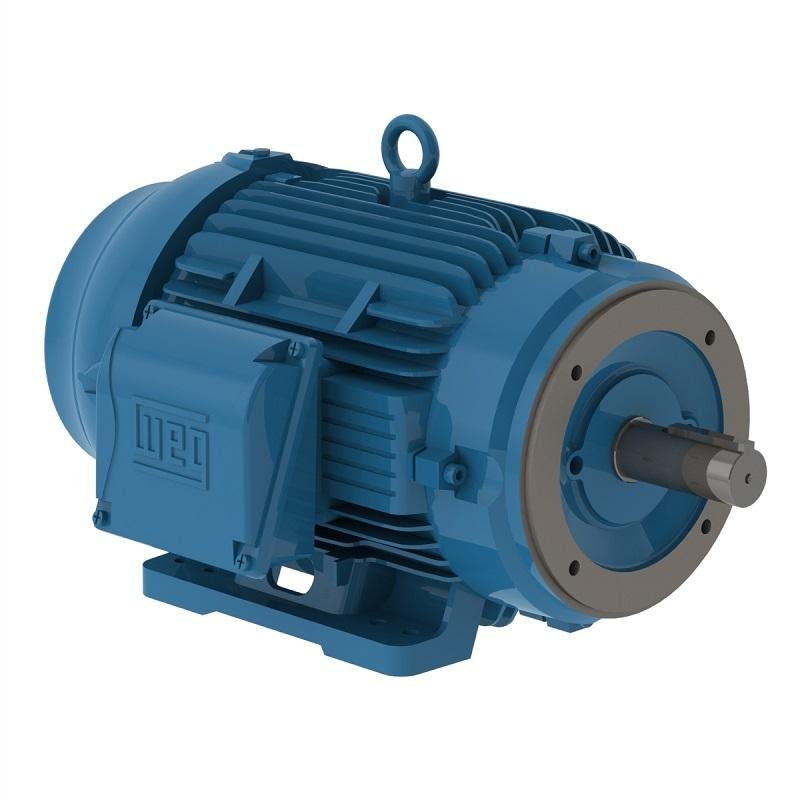

WEG CT015504NPW22 Hydraulic Electric Motor
Hydraulic Electric Motor 1800
Product Description:
- A hydraulic electric motor is a type of motor that combines both hydraulic and electric power to drive mechanical motion.
- Typically, the motor uses electricity to operate a hydraulic pump that powers hydraulic actuators (like cylinders or motors), converting hydraulic energy into mechanical motion.
- This hybrid system is commonly used when there is a need for both the precise control of hydraulics and the reliability and convenience of electric power.
- It is often referred to as a hydraulic motor, is a device that converts hydraulic pressure (the pressure of a hydraulic fluid, typically oil) into mechanical rotational motion.
- It’s a type of actuator used in hydraulic systems to generate torque and rotational movement, similar to how an electric motor generates motion from electrical energy.WEG CT015504NPW22 Hydraulic Electric Motor
Product Specification:
HP: 15
RPM: 1800
VOLTAGE: 575V
FRAME: 254TC, 256TC
PHASE: 3
POLES: 4
SERVICE FACTOR: 1.25
NOMINAL EFFICIENCY: 92.4
NOMINAL POWER FACTOR: 0.83
ENCLOSURE: TEFC
MATERIAL: Cast Iron
DOUBLE DRILLED: Yes
FRAME MATERIAL: Cast Iron
C–DIMENSION: 24.945″
NEMA DESIGN: B
DEGREE OF PROTECTION (IP): IP55
INSULATION CLASS: F
ROTATION: Reversible
DUTY: Continuous
MOUNTING: C-Face / Rigid
RATED MOTOR OUTPUT POWER: 15 HP , 11 kW
RATED MOTOR SPEED: 1765 RPM
RATED MOTOR VOLTAGE: 575V
RATED MOTOR CURRENT: 14.4 AMP
