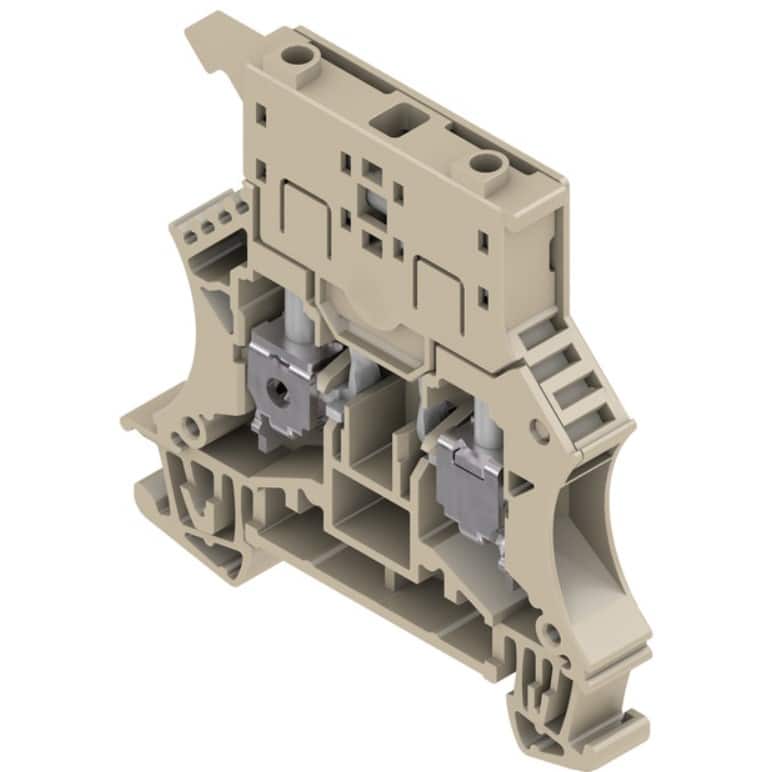

Weidmuller WSI 6 Terminal Fuse
Weidmuller WSI 6 Terminal Fuse
Product Description :
- It is a type of fuse designed to provide overcurrent protection in electrical circuits. It is typically used in situations where the fuse needs to be installed directly at the connection points or terminals of electrical equipment. The fuse acts as a safeguard, interrupting the flow of current in case of an overload or short circuit, thereby preventing damage to the components and wiring.
- The primary function of a terminal fuse is to protect electrical circuits from overcurrent conditions. It is designed to break the circuit if the current exceeds a specified limit, preventing damage to sensitive equipment and wiring.
Product Specification :
| Depth | 61Â mm |
| Depth (inches) | 2.402Â inch |
| Depth including DIN rail | 62Â mm |
| Height | 60Â mm |
| Height (inches) | 2.362Â inch |
| Width | 7.9Â mm |
| Width (inches) | 0.311Â inch |
| Rated cross-section | 6 mm² |
| Rated voltage | 500Â V |
| Rated voltage to adjoining terminal | 500Â V |
| Rated DC voltage | 500Â V |
| Rated current | 6.3Â A |
| Current at maximum wires | 6.3Â A |
| Standards | IEC 60947-7-3, IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 1.31Â W |
| Pollution severity | 3 |
