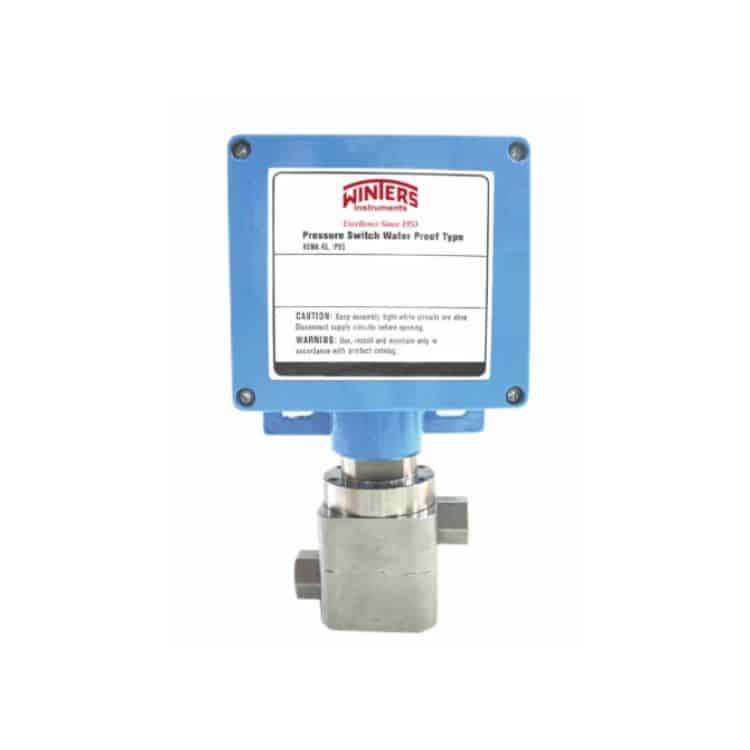

Winters Instrument 5WPS Differential Pressure Switch
Winters Instrument 5WPS Differential Pressure Switch
Product Description:
- A Pressure Switch is a critical industrial device designed to monitor, control, and protect systems based on pressure levels in gases or liquids. It operates by activating or deactivating electrical contacts when the system pressure reaches a preset setpoint, ensuring safe and efficient operation in hydraulic systems, compressors, pumps, HVAC equipment, and process automation.
- Constructed with high-quality materials, including stainless steel, brass, or durable polymers, pressure switches are engineered for long-lasting reliability, corrosion resistance, and performance under extreme conditions.
- They are available in adjustable or fixed setpoint designs and support various electrical outputs for seamless integration with control panels, PLCs, or automation systems.
- The Winters Instrument 5WPS Differential Pressure Switch is a high-performance industrial pressure monitoring device designed to detect and control differential pressure in fluid and gas systems.
- Engineered for accuracy, reliability, and durability, this 5WPS differential pressure switch provides precise measurement and automatic switching for pumps, compressors, HVAC systems, hydraulic equipment, and process control applications.
- Manufactured by Winters Instrument, a trusted brand in pressure and level monitoring, the 5WPS differential pressure switch ensures consistent system performance, safe operation, and quick response to pressure changes. It features a robust housing, corrosion-resistant materials, and adjustable setpoints, making it suitable for demanding industrial, commercial, and mechanical systems.
Product Specification:
| Housing | Heavy-duty die-cast aluminum, blue colour |
| Accuracy | +/- 1% of the adjustable set-point range |
| Pressure Connection | Female 1/4″ NPT or BSP |
| Electrical Connection | Female 1/2″ or 3/4″ NPT, M20xP1.5 |
| Wetted Parts | Low pressure ranges – 316 Stainless Steel welded & Titanium High pressure ranges – 316 Stainless Steel welded |
| Set Point Adjustment | Field selectable |
| Deadband | Fixed see Order Codes |
| Contact Rating | 15A @ 125/250VAC 0.4A @ 125VDC 3A @ 30VDC Gold contact microswitch: |
| No. of Contacts | 1 x SPDT or 2 x SPDT |
| Ambient/Process Temperature |
-30 to 205 deg C (-22 to 400 deg F) |
| Enclosure Rating | NEMA 4 & 4X, IP66 Protection against liquid and solid ingress, suitable for indoor or outdoor use and resistant to corrosion |
| Approvals | RU recognized, file no E12252 (switch only) CRN registration pending |
| Weight | 4.95 lbs (2.25 kg) |
