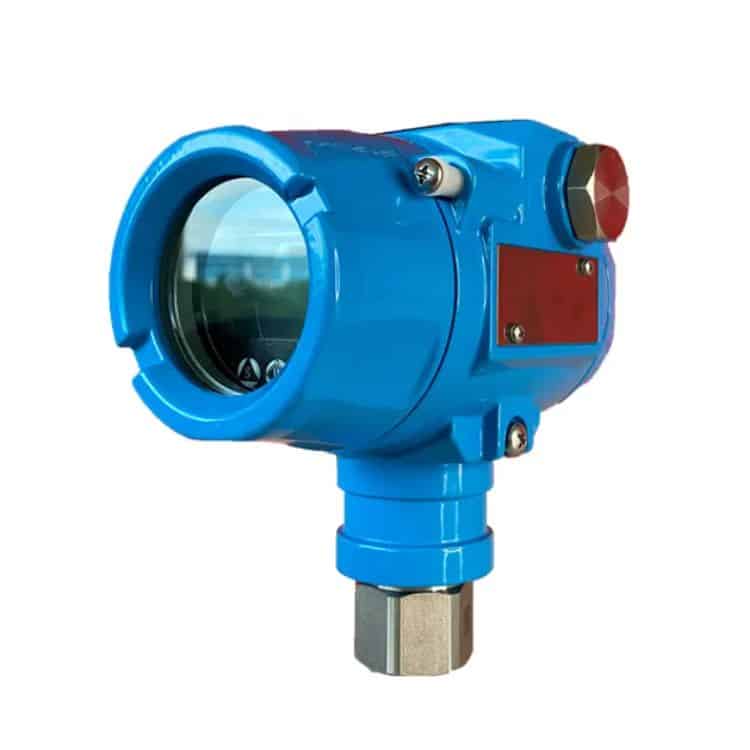

Winters Instrument WinSmart LY16 Pressure Transmitter
Winters Instrument WinSmart LY16 Pressure Transmitter
Product Description:
- A Pressure Transmitter is a precision industrial instrument used to measure, monitor, and transmit pressure values in the form of a standard electrical output signal such as 4–20 mA, 0–10 V, or digital communication protocols.
- It is widely used in oil & gas, water treatment, HVAC, power generation, chemical processing, and manufacturing industries for accurate and continuous pressure monitoring.
- Designed with a high-accuracy sensing element, the pressure transmitter converts gauge, absolute, or differential pressure into a stable and repeatable signal that can be easily integrated with PLCs, DCS, SCADA, and control systems. Its rugged stainless steel or alloy housing provides excellent resistance to corrosion, vibration, temperature fluctuations, and harsh industrial environments.
- The Winters Instrument WinSmart LY16 Pressure Transmitter is a high-accuracy industrial pressure measurement device designed for reliable monitoring and control in demanding process applications.
- The Winters Instrument WinSmart LY16 Pressure Transmitter delivers precise pressure readings and stable output, making it ideal for use in industrial automation, hydraulic systems, pneumatic applications, and process control environments.
- Engineered with advanced sensor technology, the Winters Instrument WinSmart LY16 Pressure Transmitter converts pressure into a standardized electrical signal for seamless integration with PLCs, DCS systems, and control panels.
- Its robust construction ensures long-term durability, excellent vibration resistance, and consistent performance even in harsh operating conditions.
Product Specification:
| Output Signal | 4/20 mA, 2-wire / V = 10.5-55 Vdc 4/20 mA + HART 5, 2-wire / V = 16.5-55 vdc or 12.55-55 Vdc (low power) 1/5 Vdc, 3-wire / V = 10.5-55 Vdc Modbus, 4-wire / V = 9-30 Vdc |
| LCD Display | LCD display (standard) or without LCD display (optional) |
| Accuracy | 0.2% standard; 0.5%, 0.1%, 0.075% or 0.05% optional |
| Stability | 0.1% per year |
| Temperature Range | Working: -40/85°C (with display -20/70°C), -40/185°F (without display -4/158°F) Storage: -40/110°C (with display -40/85°C), -40/230°F (without display -40/185°F) Media: silicone oil filling: -40/120°C (-40/248°F) |
| Working Humidity | 5-100% at 40°C (104°F) |
| Pressure Connection | 1/4” or 1/2” NPTM or F, 1/4” or 1/2” GM (large 10mm orifice) |
| Housing | Rugged die-cast aluminum housing, painted blue |
| Wetted Parts | 316L SS |
| Overload Pressure | 1.5 x rated pressure |
| Power Consumption | < =500 mW @ 24 VDC, 20.8 mA (LCD); </=493mW @ 24VDC, 20.55mA (without LCD) |
| Wake-Up Time | 6 seconds |
| Vibration | 20g, 20Hz…5kHz According to GB/T 1827.3 / IEC 61298-3 tests, <0.1% URL |
| Shock | 20g, 20Hz…5kHz |
| Available Pressure Units | kPa, Mpa, bar, psi, mmHg, mmH2O, mH2O, inH2O, ftH2O, inHg, mHg, TORR, mbar, g/cm2, kg/cm2, Pa, ATM |
| Available Temperature Units | Celsius, Fahrenheit |
| Protection Class | EMI, ESD, RFI, reverse polarity protected; Surge protection IEC1000-4-5 |
| Approvals | CSA, for USA & Canada • Class I, 1, Group A,B,C and D T6 | Class II, Division 1 Group E, F and G T80oC | Class III Intertek, for USA & Canada • Class I, Zone 0 A Ex ia IIC T6 Gb | Class I, Division 1, Group A-D, T6 | – 40oC to 60oC SIL 3 Capable • IEC 61508: 2010 ATEX • II 2G Ex db IIC T6 Gb • II 1G Ex ia IIC T6 Ga |
| Protection Class | IP66 / IP67 |
| Weight | 2.9 lbs (1.3 kg) |
| Operational Life | 100 million cycles |
