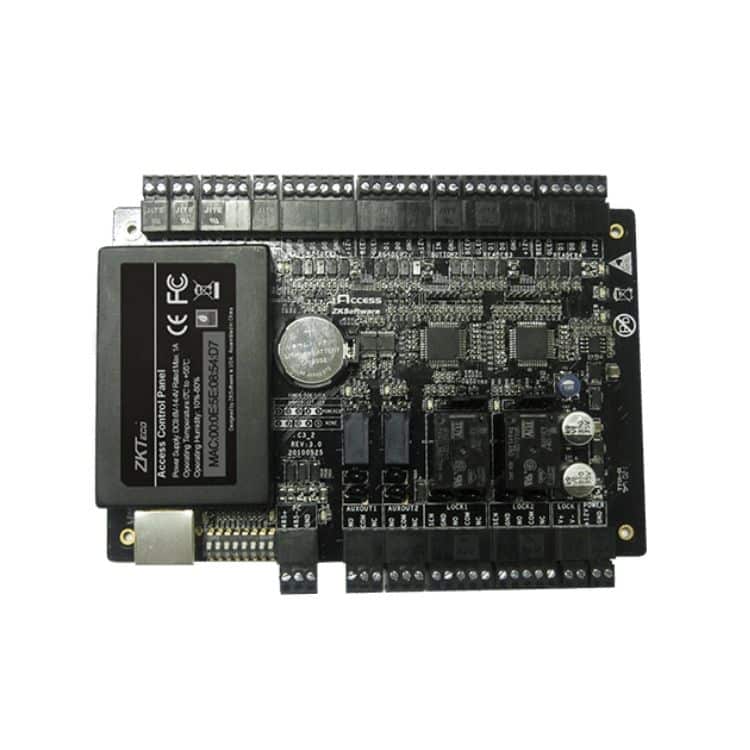

ZKTeco C3-100 Access Control Panel

ZKTeco C3-100 Access Control Panel

ZKTeco C3-100 Access Control Panel

Product Description :

• An Access Control Panel is the central management unit of an access control system, responsible for authorizing, monitoring, and controlling entry and exit points within residential, commercial, and industrial facilities.
• It processes signals from card readers, biometric devices, keypads, and sensors, then activates electric locks, magnetic locks, or turnstiles based on predefined security rules.
• Designed for reliable and secure operation, the Access Control Panel supports multiple doors and users, enabling administrators to manage permissions, schedules, and audit logs efficiently.
• Built with robust electronic components and secure communication protocols, it ensures high-level security, fast response, and system stability, even in demanding environments.
• The ZKTeco C3-100 Access Control Panel is a reliable and intelligent access management solution designed for secure door control, user authentication, and centralized access monitoring.
• The ZKTeco C3-100 Access Control Panel is widely used in commercial, industrial, and institutional environments where security, scalability, and system stability are critical.
• Built with advanced access control technology, the ZKTeco C3-100 Access Control Panel supports single-door access control and is compatible with a wide range of ZKTeco biometric readers, RFID card readers, keypads, and third-party Wiegand devices. This makes the ZKTeco C3-100 Access Control Panel an ideal choice for offices, warehouses, data centers, factories, and restricted-access areas.

Product Specification :

• Number of Door : 1 Door
• Card Holders Capacity : 30000
• Log Events Capacity : 100000
• Communication : TCP/IP and RS-485
• Number of Readers Supported : 2 ( 26-bit Wiegand reader)
• Types of Readers Supported : 26-bit Wiegand, others upon request
• Number of Inputs :2( 1 Exit Button, 1 Door Sensor)
• Number of Outputs : 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)
• Weight : 7.4lbs (3.35kg)
• Enclosure : Powder Coated Aluminium
• Mounting : Wall Mount
• Recommended Power Supply : 12V DC, 1.5A
• Dimensions (Bundle Only) : 380mm(L)X80mm(W) X 280mm(H)
• Dimensions ( Board Only) : (160mm×106mm)

Features

• Number of Door : 1 Door
• Category: Door Controller, Card Holders Capacity : 30000,
• Log Events Capacity : 100000
• Communication : TCP/IP and RS-485
