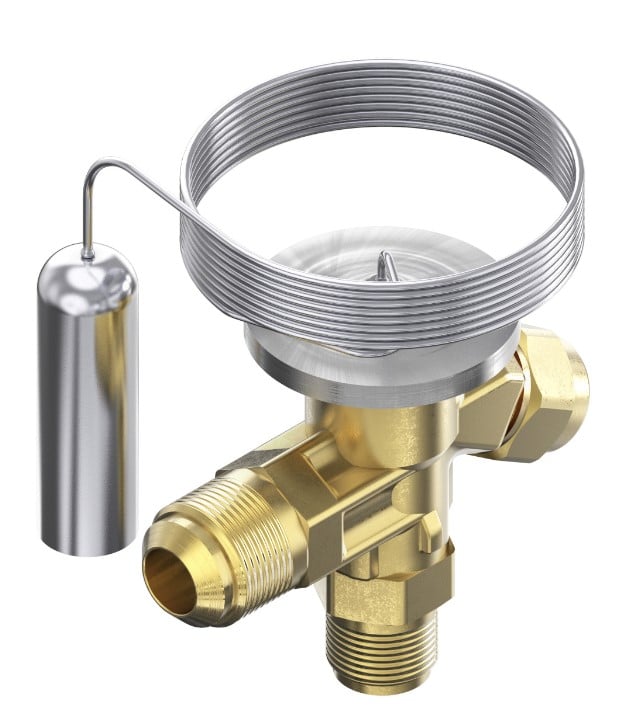

Danfoss 068Z3403 Thermostatic Expansion Valve
Danfoss 068Z3403 Thermostatic Expansion Valve
- It is a type of refrigerant metering device used in refrigeration and air conditioning systems. It controls the flow of refrigerant into the evaporator coil based on the cooling load and temperature conditions within the system. The primary function of a thermostatic expansion valve is to maintain a constant and precise level of superheat at the evaporator outlet, ensuring optimal system performance and efficiency.
Product Specification:
| Gross weight | 0.318 Kg |
| Net weight | 0.293 Kg |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| Outlet connection type | Flare |
| Outlet size [in] | 1/2 in |
