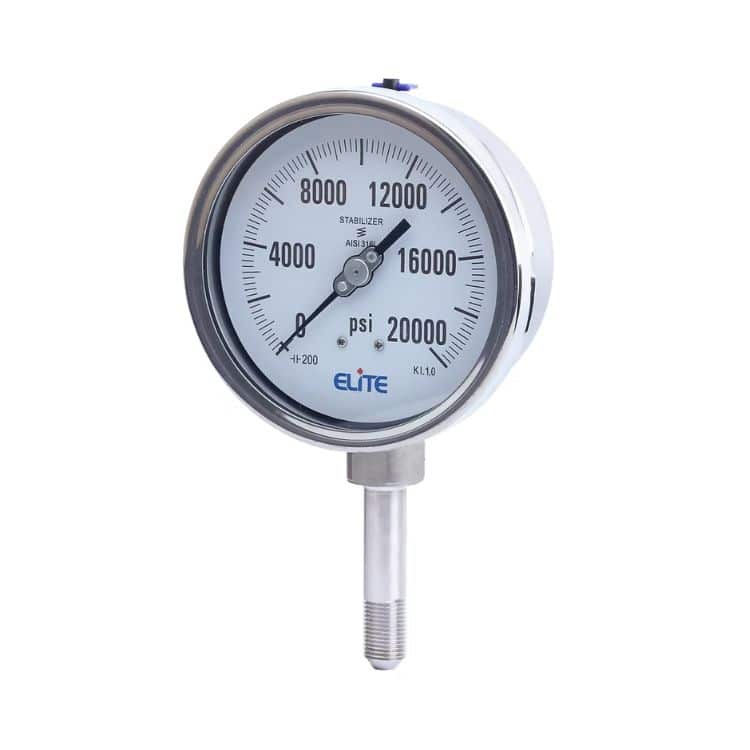

Elite P-21 Pressure Gauge
Elite P-21 Pressure Gauge
Product Description:
- A Pressure Gauge is a precision instrument designed to measure and display the pressure of liquids or gases in a system, ensuring safe and efficient operation of industrial, hydraulic, and pneumatic equipment. It is widely used in pipelines, compressors, pumps, boilers, and process control systems to monitor system performance and prevent overpressure situations.
- Manufactured from high-quality metals and durable components, pressure gauges provide accurate readings, long-term reliability, and resistance to corrosion, vibration, and extreme temperatures. They are available in analog and digital formats, with various pressure ranges and connection types to suit different industrial applications.
- The Elite P-21 Pressure Gauge is a high-accuracy pressure measuring instrument designed for reliable performance in industrial, hydraulic, pneumatic, and mechanical systems. The Elite P-21 Pressure Gauge provides precise and stable pressure readings, helping operators monitor system pressure, maintain safety, and prevent equipment damage.
- Manufactured using high-quality materials, the Elite P-21 Pressure Gauge features a robust casing, clear dial visibility, and excellent resistance to vibration and pressure fluctuations. This makes the Elite P-21 Pressure Gauge ideal for use in compressors, pumps, pipelines, generators, hydraulic systems, and industrial machinery.
Product Specification:
- Ambient Temperature:-4°F(-20°C) to +150°F (+65°C)
- Process Temperature:Max. 212°F (100°C)
Operating Pressure Range:75% of Scale Value
Over Pressure Limit:125% of Max.Scale Value - Case:AISI 304 SS
- Joints:Tig Argon Arc Welding
- Socket:AISI 316L SS
- Bourdon:AISI 316L SS
- Movement:AISI 304 SS
- Dial:Aluminum
- Pointer:Micro Zero Adjustable
- Window:Safety Glass
- Range:15,000psi-60,000psi
