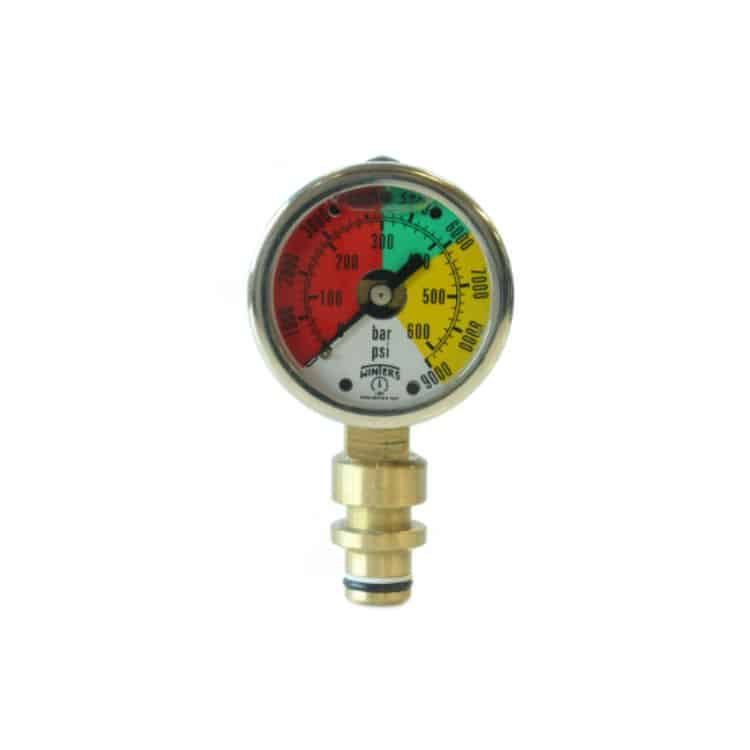

Winters Instrument PMN Mining Pressure Gauge
Winters Instrument PMN Mining Pressure Gauge
Product Description:
- A Pressure Gauge is a mechanical measuring instrument used to indicate and monitor pressure levels in liquids and gases across a wide range of industrial and commercial applications. It provides direct, real-time pressure readings and is commonly used in hydraulic systems, pneumatic equipment, compressors, boilers, pumps, HVAC systems, and process industries.
- Manufactured with a high-quality Bourdon tube or diaphragm sensing element, the pressure gauge converts internal pressure into accurate needle movement displayed on a clear, easy-to-read dial.
- The durable stainless steel or brass construction ensures excellent resistance to corrosion, vibration, and harsh operating environments, delivering long-lasting and reliable performance.
- The Winters Instrument PMN Mining Pressure Gauge is a precision-engineered industrial gauge designed for accurate pressure measurement in mining, heavy machinery, and industrial applications.
- Built for rugged environments, this PMN pressure gauge ensures reliable performance, high durability, and safety in the most demanding mining operations.
- Manufactured by Winters Instrument, a trusted name in industrial instrumentation, the PMN Mining Pressure Gauge delivers consistent, precise readings for hydraulic systems, pneumatic systems, and industrial process control.
- Its robust construction resists vibration, shock, and extreme temperatures, making it ideal for surface and underground mining applications, heavy-duty compressors, and hydraulic equipment.
Product Specification:
| Dial | 2” (50mm): White aluminum, black lettering, triple colour scale (red, green, yellow) |
| Case | One-piece forged brass case |
| Wetted parts | Brass |
| Fill Liquid | Glycerin standard |
| Lens | Polycarbonate |
| Connection | 3/8” Steck-O connection, quick connect with 90 Durometer Buna N sealing o-ring and PTFE washer (bottom connection) |
| Pointer | Aluminum, anodized black |
| Over-Pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 70% of full scale value |
| Ambient/ProcessTemperature | -4°F to 150°F (-20°C to 65°C) glycerin-filled-40°F to 150°F (-40°C to 65°C) dry |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP65 |
