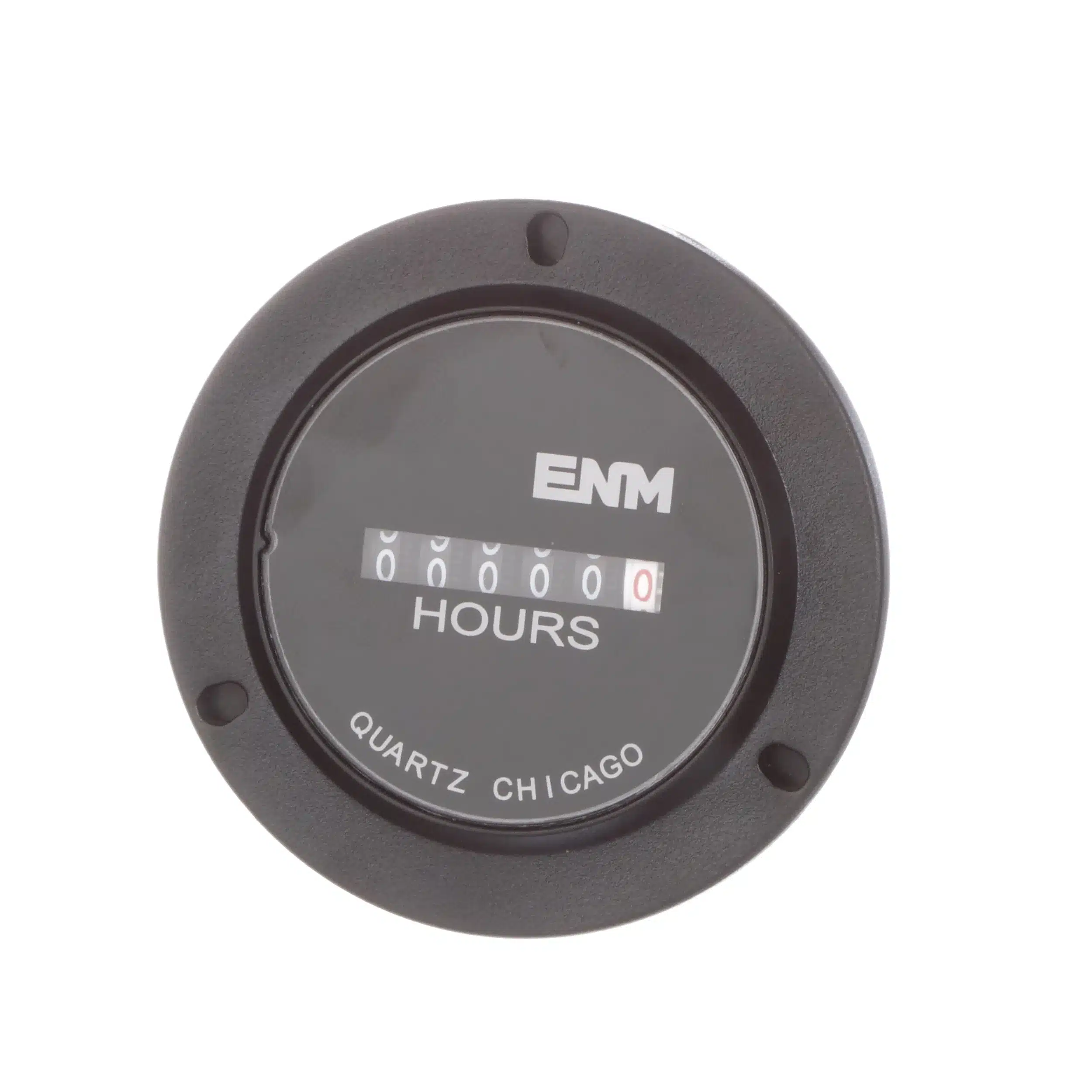

ENM T50B212 Panel Meter
ENM T50B212 Panel Meter
Product Description:
- A panel meter refers to an instrument that displays a measurement (such as voltage, current, resistance, temperature, or other electrical parameters) on a panel or control board. Panel meters are widely used in various applications where monitoring and displaying specific electrical or physical quantities are essential. They provide a visual representation of the measured values, allowing operators or users to quickly assess the status of a system.
- The ENM T50B212 Panel Meter is a precision digital panel meter designed for accurate voltage, current, and power monitoring in industrial and electrical systems. This high-performance ENM T50B212 Panel Meter provides reliable measurements, real-time monitoring, and easy integration into control panels, switchboards, and automation systems.
- Engineered for durability and precision, the ENM T50B212 features a clear display, fast response time, and robust construction, making it ideal for industrial machinery, power generation, process control, and electrical equipment. The meter is widely used in factories, power plants, automation systems, and heavy-duty electrical installations, ensuring operators can monitor and maintain optimal system performance at all times.
Product Specification:
- Application: Accurate time keeping
- Connection Type: Blade Terminal
- Depth: 1.26″ (32mm)
- Diameter: 2 ; 2.8 in
- Dimensions: 1.68 W x 1.68 H x 1.26 D in
- Dimensions, Cutout, Inches:Â 2 Dia. in
- Display Digit Height: 0.14 in.
- Display Type: Digital
- Function: Hour Meter
- Input Type: Voltage
- Maximum Opening Temperature: +65 °C
- Measurement Range: 0 to 99999.9 hr.
- Measuring Range:Â 0 to 99999.9 hr
- Minimum Operating Temperature: -30 °C
- Mounting Type: Panel Mount
- Number of Digits: 6
- Panel Cut Out: 2 in., 50.8 mm Dia.
- Primary Type: Electromechanical
- Product Header:Â T50 Series AC Hour Meter
- Special Features: Quartz Accuracy
- Supply Voltage: 115 VAC
- Temperature Range: -30 to 65 C
- Type: Electromechanical
