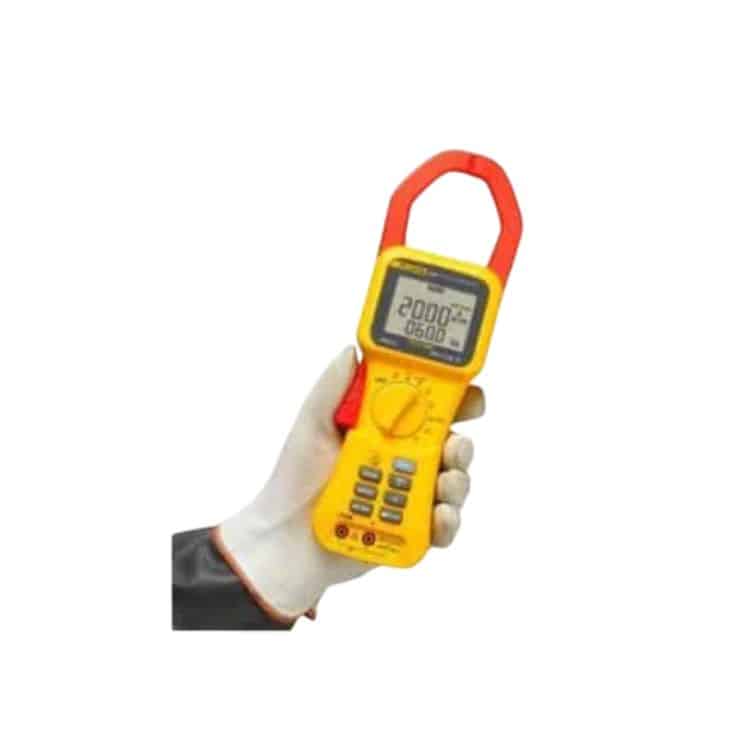

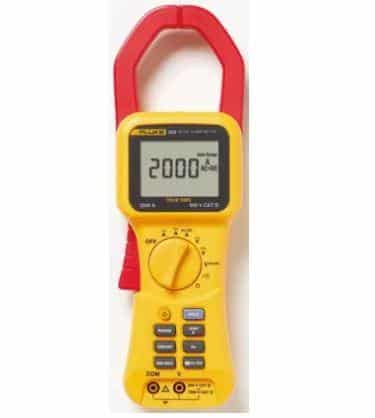

Fluke 355 Clamp Meter
Fluke 355 Clamp Meter
Product Description:
- A clamp meter, also known as a clamp-on ammeter or tong tester, is a versatile electrical testing tool use to measure current flowing through a conductor without the need to make physical contact with the circuit. It is particularly useful for measuring alternating current (AC) in electrical systems.
- The Fluke 355 Clamp Meter is a precision instrument designed for safe and accurate electrical measurements. This advanced clamp meter allows electricians, technicians, and engineers to easily measure AC and DC current without breaking the circuit.
- Featuring a compact and ergonomic design, the Fluke 355 Clamp Meter provides reliable voltage, resistance, and continuity readings for industrial, commercial, and residential applications. Trusted for its durability and high performance, the Fluke 355 Clamp Meter ensures accurate diagnostics, making it an essential tool for electrical troubleshooting and maintenance.
Product Specification:
| Attribute | Value |
| Absolute Maximum AC Current Measurement | 2kA ac |
| Absolute Maximum DC Current Measurement | 2kA dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 400kΩ |
| Model Number | 355 |
| AC Current Measurement Resolution | 10mA |
| DC Current Measurement Resolution | 10mA |
| Best DC Current Accuracy | ±(1.5% rdg + 5dgts) |
| Clamp Meter Type | AC/DC Clamp Meter |
| Best AC Current Accuracy | ±(1.5% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(1% rdg + 5dgts) |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Frequency, Resistance |
| Best DC Voltage Accuracy | ±(1% rdg + 5dgts) |
| True RMS | Yes |
| Dimensions | 300 x 98 x 52mm |
| Width | 98mm |
| Jaw Capacity Busbars | 58mm |
| DC Voltage Measurement Resolution | 1mV |
| Resistance Measurement Resolution | 100mΩ |
| Length | 300mm |
| Power Source | Battery |
| Display Type | LCD |
| Best Resistance Measurement Accuracy | ±1.5% + 5 Digits |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Battery Type | AA |
| Safety Category Voltage | 600 V, 1000 V |
| Maximum Conductor Size | 58mm |
| Maximum Operating Temperature | +50°C |
| Safety Category Level | CAT IV, CAT III |
| Weight | 814g |
| Battery Life | 100 h |
| Minimum Operating Temperature | 0°C |
| Height | 52mm |
| AC Voltage Measurement Resolution | 1mV |
