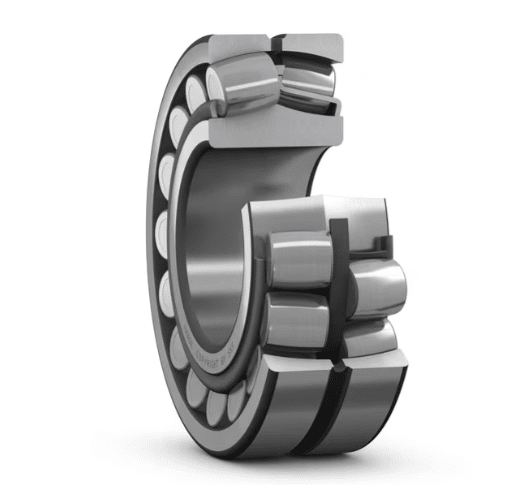

NBC 22318 MBW35 Spherical Roller Bearing
NBC 22318 MBW35 Spherical Roller Bearing
Product Description :
- They are a type of rolling-element bearing that can accommodate misalignment and are designed to handle heavy loads.It consists of two rows of symmetrical spherical rollers, a common spherical outer raceway, and an inner ring with two raceways.
- They  can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Product Specification :
| Dimensions | |
|---|---|
| Bore Diameter | 90 mm |
| Outside Diameter | 190 mm |
| Width | 64 mm |
| Fatigue Load Limit | 70.7 KN |
| Dynamic Load Rating | 489 KN |
| Static Load Rating | 641 KN |
