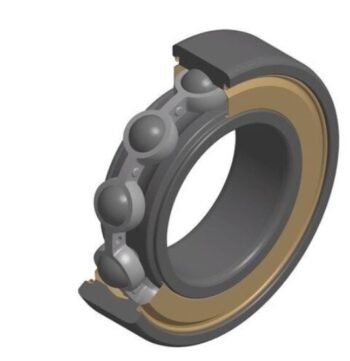

NTN 6308ZZ Single Row Deep Groove Bearing
NTN 6308ZZ Single Row Deep Groove Bearing
Product Description :
- It is one of the most common types of ball bearings used in a wide range of applications. It’s called “deep groove” because the raceway (the path in which the ball travels) has a deep, circular shape that allows it to accommodate both radial and axial loads, making it versatile and efficient.
- As the name suggests, the bearing has a single row of balls that move along the inner and outer raceways. This design is simple, compact, and effective for many standard applications.
- The bearing uses spherical balls as the rolling elements between the inner and outer rings. These balls help reduce friction by rolling rather than sliding.
Product Specification :
- Internal diameter – 40 mm
- External diameter – 90 mm
- Bearing/Inner ring width – 23 mm
- External diameter inner ring – 54,4 mm
- Inner diameter outer ring – 77,2 mm
- Min fillet radius – 1,5 mm
