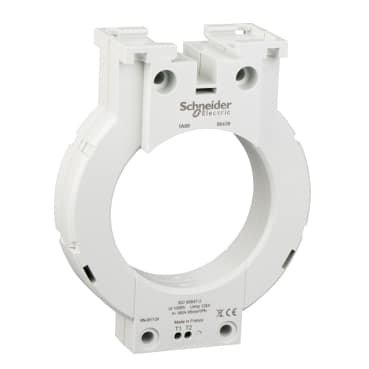

Schneider Electric 50439 Closed Toroid
Schneider Electric 50439 Closed Toroid
Product Description :
- It is a type of magnetic core shaped like a doughnut (a ring), often used in electrical transformers, inductors, and magnetic circuits. It’s made of a ferromagnetic material like iron or ferrite, and wire is wound around it to create inductance.
- The term “closed” refers to the fact that the magnetic path is continuous with no air gap, which reduces magnetic flux leakage and improves efficiency. This design keeps the magnetic field contained within the core, making it ideal for compact, high-frequency, and low-interference applications.
Product Specification :
| Transformer ratio | 1/1000 |
|---|---|
| Network type | AC/DC |
| Network frequency | 45…440 Hz |
| [Icw] rated short-time withstand current | 85 kA for 0.5 s |
| Residual short-circuit withstand current | 85 kA / 0.5 s conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 1000 V |
| Overvoltage category | IV |
| [Uimp] rated impulse withstand voltage | 12 kV |
