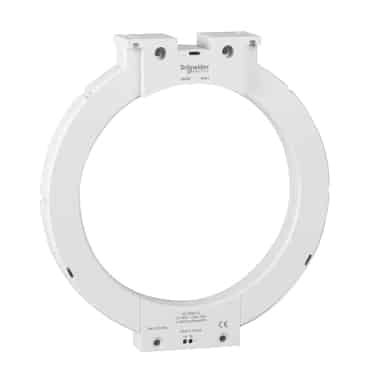

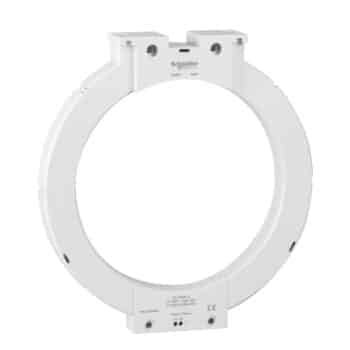

Schneider Electric 50441 Closed Toroid
Schneider Electric 50441 Closed Toroid
Product Description :
- It is a type of magnetic core shaped like a doughnut (a ring), often used in electrical transformers, inductors, and magnetic circuits. It’s made of a ferromagnetic material like iron or ferrite, and wire is wound around it to create inductance.
- The term “closed” refers to the fact that the magnetic path is continuous with no air gap, which reduces magnetic flux leakage and improves efficiency. This design keeps the magnetic field contained within the core, making it ideal for compact, high-frequency, and low-interference applications.
Product Specification :
-
Transformer ratio 1/1000 Network type AC/DC Network frequency 45…440 Hz [Icw] rated short-time withstand current 85 kA for 0.5 s Residual short-circuit withstand current 85 kA / 0.5 s conforming to IEC 60947-2 [Ui] rated insulation voltage 1000 V Overvoltage category IV [Uimp] rated impulse withstand voltage 12 kV
