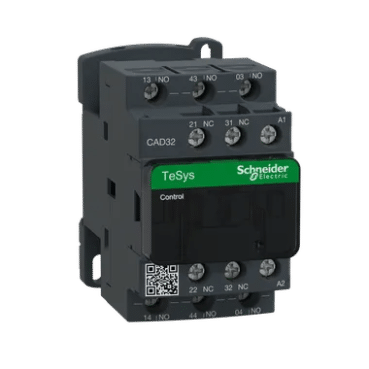

Schneider Electric CAD32E7 Control Relay
Schneider Electric CAD32E7 Control Relay
Product Description :
- It is an electrically operated switch used to control electrical circuits or devices from a distance. It allows low-power signals to control higher-power circuits, providing isolation and protection for control systems.
- The primary function of relay is to act as an electrically controlled switch. It allows a low-voltage control circuit to control the operation of a higher-voltage circuit or device.
- They provide electrical isolation between the control circuit (often low voltage) and the load circuit (higher voltage), which enhances safety by preventing direct contact or interference between different circuits.
- They amplify signals, allowing small control signals to switch larger currents or voltages, which is crucial in industrial automation and control systems.
- It procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw.
Product Specification :
| Inrush power in VA | 70 VA 50 Hz (at 20 °C) |
|---|---|
| Hold-in power consumption in VA | 8 VA 50 Hz (at 20 °C) |
| Minimum switching voltage | 17 V |
| Minimum switching current | 5 mA |
| Non-overlap time | 1.5 ms on energisation between NC and NO contact 1.5 ms on de-energisation between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Mechanical robustness | Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations control relay open: 2 Gn, 5…300 Hz conforming to IEC 60068-2-6 Vibrations control relay closed: 4 Gn, 5…300 Hz conforming to IEC 60068-2-6 |
| Height | 77 mm |
| Width | 45 mm |
| Depth | 84 mm |
