Schneider Electric LR9G225 Electronic Thermal Overload Relay

Inquire for shipping charges

Brand: Schneider Electric

Part Number: LR9G225

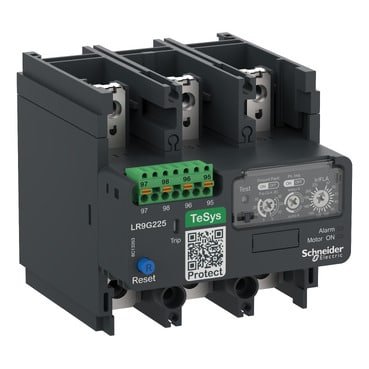

Schneider Electric LR9G225 Electronic Thermal Overload Relay

Schneider Electric LR9G225 Electronic Thermal Overload Relay

Product Description:

  • An Electronic Thermal Overload Relay is a precision protective device designed to safeguard electric motors and equipment from damage caused by overloads, phase loss, or unbalanced currents.

  • Unlike traditional bimetallic overload relays, electronic versions use advanced current-sensing technology and microcontroller-based logic to deliver faster, more accurate protection.

  • These relays are typically installed in motor control circuits and integrated with contactors, ensuring the motor is disconnected when abnormal conditions are detected—helping prevent overheating, downtime, and costly repairs.

  • An Electronic Thermal Overload Relay is a modern, intelligent solution for protecting motors in mission-critical environments, offering superior accuracy, diagnostics, and adaptability over traditional thermal relays.

Product Specification:

Network frequency 30…60 Hz
100 Hz
Overvoltage category III
Tripping threshold 1.125 +/- 0.07 In conforming to IEC 60947-4-1
Protection type Ground fault protection – tripping time adjustment: 0…1 s – for alarm circuit conforming to IEC 60947-4-1
Ground fault protection – tripping time adjustment: 0…1 s – for alarm circuit conforming to UL 60947-4-1
Phase loss – tripping time adjustment: 0…4 s – for alarm circuit
Phase imbalance – tripping time adjustment: 0…5 s – for alarm circuit conforming to IEC 60947-4-1
Phase imbalance – tripping time adjustment: 0…5 s – for alarm circuit conforming to UL 60947-4-1
Local signalling LED
Trip indicator
Contacts type and composition 1 NO + 1 NC
[Ith] conventional free air thermal current 5 A
[Uc] control circuit voltage 24…500 V AC 50/60 Hz
24…250 V DC
[Ue] rated operational voltage 1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
Reset Automatic reset
Manual
Mechanical durability 7000 cycles
Surge withstand 4 kV
Electromagnetic compatibility EMC immunity conforming to IEC 60947-4-1
Emission tests criteria A conforming to IEC 60947-4-1
Immunity to radiated radio-electrical interference – test level: 20 V/m conforming to EN/IEC 61000-4-3
Voltage dips and interruptions immunity test conforming to SEMI F47
Connections – terminals Power circuit: bar – busbar cross section: 25 x 6 mm
Power circuit: lugs-ring terminals 1 185 mm²
Control circuit: push-in 1 0.2…2.5 mm² – cable stiffness: solid stranded without cable end
Control circuit: push-in 1 0.25…2.5 mm² – cable stiffness: flexible with cable end
Control circuit: push-in 2 0.5…1.0 mm² with cable end
Tightening torque 18 N.m
Mounting support Direct on contactor
Plate
Relay application Motor protection
Network type AC
Thermal overload class Class 5E…30E conforming to IEC 60947-4-1
Thermal protection adjustment range 57…225 A
