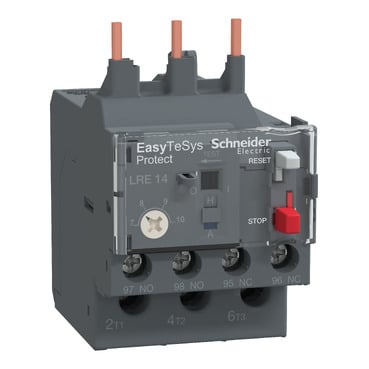

Schneider Electric LRE14 Thermal Overload Relay
Schneider Electric LRE14 Thermal Overload Relay
Product Description :
- It is an electrical device used to protect electric motors from damage caused by excessive current or overloading. It is typically installed in motor control circuits and operates by monitoring the current flowing through the motor.
- They sense the current passing through the motor using built-in current transformers or shunt trips. They continuously monitor the current to detect any abnormal or excessive currents that could indicate an overload condition.
- It contain a bimetallic heating element or a heater coil that is directly or indirectly heated by the current passing through it. As the current increases, the heating element generates heat, causing it to expand.
- It play a critical role in protecting electric motors from damage due to overloading, phase failure, or other electrical faults. They are often integrated with motor starters or contactors to provide comprehensive motor protection.
Product Specification :
-
Network type AC Network frequency 50…60 Hz Mounting support Under contactor
Plate, with specific accessories
Rail, with specific accessoriesThermal overload class Class 10A conforming to IEC 60947-4-1 Signalling function Relay trip indicator Thermal protection adjustment range 7…10 A Tripping threshold 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 Mechanical robustness Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7
Vibrations: 3 GN conforming to IEC 60068-2-6Auxiliary contact composition 1 NO + 1 NC [Ith] conventional free air thermal current 5 A for signalling circuit [Ue] rated operational voltage <= 690 V AC
