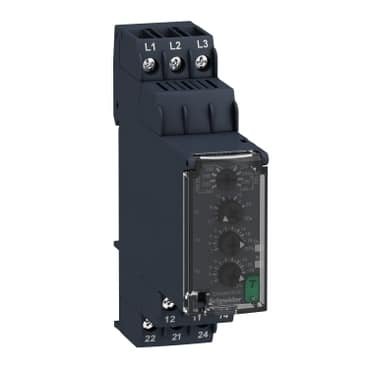

Schneider Electric RM22TR31 Control Relay
Schneider Electric RM22TR31 Control Relay
Product Description :
- It is an electrically operated switch used to control electrical circuits or devices from a distance. It allows low-power signals to control higher-power circuits, providing isolation and protection for control systems.
- The primary function of relay is to act as an electrically controlled switch. It allows a low-voltage control circuit to control the operation of a higher-voltage circuit or device.
- They provide electrical isolation between the control circuit (often low voltage) and the load circuit (higher voltage), which enhances safety by preventing direct contact or interference between different circuits.
- They amplify signals, allowing small control signals to switch larger currents or voltages, which is crucial in industrial automation and control systems.
- It procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw.
Product Specification :
-
Maximum switching voltage 250 V AC Minimum switching current 10 mA at 5 V DC Maximum switching current 8 A AC [Us] rated supply voltage AC/DC Supply voltage limits 160…288 V AC operating limits – 20 % + 20 % Un Power consumption in VA 10 VA at 240 V AC 60 Hz Voltage detection threshold < 100 V AC supply voltage frequency 50…60 Hz +/- 10 % Output contacts 2 C/O Setting accuracy of the switching threshold +/- 10 % of the full scale
