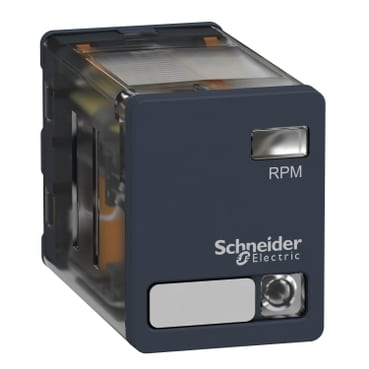

Schneider Electric RPM23P7 Plug In Relay
Schneider Electric RPM23P7 Plug In Relay
Product Description :
- It refers to a type of electromechanical relay that is designed for easy installation and removal from a socket or base. They are designed to be mounted onto a socket or base, which is typically fixed to a control panel or equipment enclosure. The relay plugs securely into this socket, making electrical connections with terminals within the socket.
- They are modular in design, allowing for quick replacement or maintenance without needing to rewire or solder connections.
- They use an electromagnet to mechanically operate switch contacts (normally open, normally closed, or both). When the coil is energized, it creates a magnetic field that pulls or releases the switch contacts, thereby opening or closing the circuit.
- The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status.
Product Specification :
| Maximum switching voltage | 250 V conforming to IEC |
|---|---|
| Resistive load current | 15 A at 250 V AC 15 A at 28 V DC |
| Maximum switching capacity | 3750 VA 420 W |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Average coil consumption in VA | 1.1 at 60 Hz |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Operate time | 20 ms at nominal voltage |
| Release time | 20 ms at nominal voltage |
| Average coil resistance | 16270 Ohm at 20 °C +/- 15 % |
| Rated operational voltage limits | 184…253 V AC |
