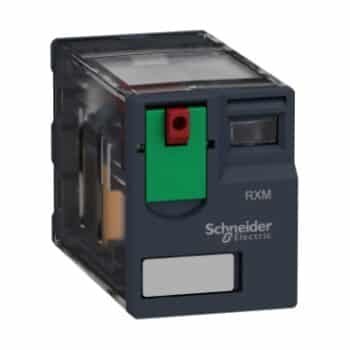

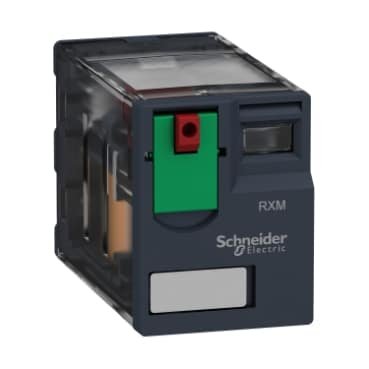

Schneider Electric RXM4AB1P7 Plug In Relay
Schneider Electric RXM4AB1P7 Plug In Relay
Product Description :
- It refers to a type of electromechanical relay that is designed for easy installation and removal from a socket or base. They are designed to be mounted onto a socket or base, which is typically fixed to a control panel or equipment enclosure. The relay plugs securely into this socket, making electrical connections with terminals within the socket.
- They are modular in design, allowing for quick replacement or maintenance without needing to rewire or solder connections.
- They use an electromagnet to mechanically operate switch contacts (normally open, normally closed, or both). When the coil is energized, it creates a magnetic field that pulls or releases the switch contacts, thereby opening or closing the circuit.
- The test button is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the test button, where an orange flag indicates the relay contact status.
-
A Plug-In Relay is an electromechanical device designed to control high-power circuits using low-power signals. Its plug-in design allows for easy installation, replacement, and maintenance without the need for soldering or complex wiring, making it ideal for industrial, automotive, and commercial applications.
-
Constructed with high-quality materials and reliable contacts, plug-in relays provide durable performance, precise switching, and long operational life. They are essential components in automation, control, and protection systems, enabling safe and efficient operation.
Product Specification :
- Brand – Schneider Electric
- Part Number – RXM4AB1P7
- Part Name – Plug-In Relay
