SKF 22220 EK C3 Spherical Roller Bearing

Inquire for shipping charges

Brand: SKF
P/N: 22220 EK C3

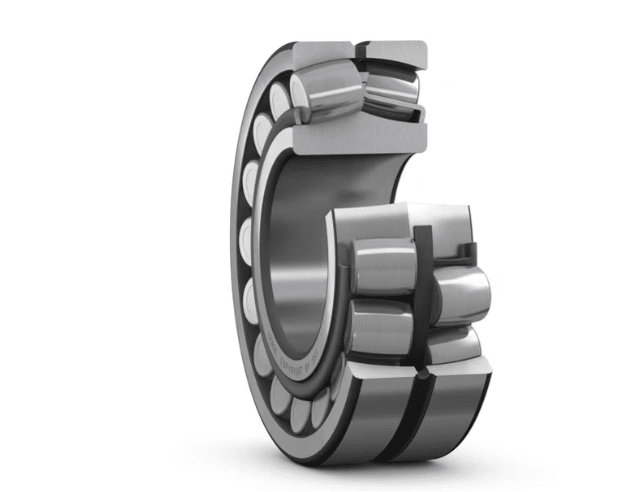

SKF 22220 EK C3 Spherical Roller Bearing

SKF 22220 EK C3 Spherical Roller Bearing

Product Description :

  • They are a type of rolling-element bearing that can accommodate misalignment and are designed to handle heavy loads.It consists of two rows of symmetrical spherical rollers, a common spherical outer raceway, and an inner ring with two raceways.
  • They  can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Product Specification :

Bore diameter 100 mm
Outside diameter 180 mm
Width 46 mm
Basic dynamic load rating 433 kN
Basic static load rating 490 kN
Reference speed 3 400 r/min
Limiting speed 4 500 r/min
