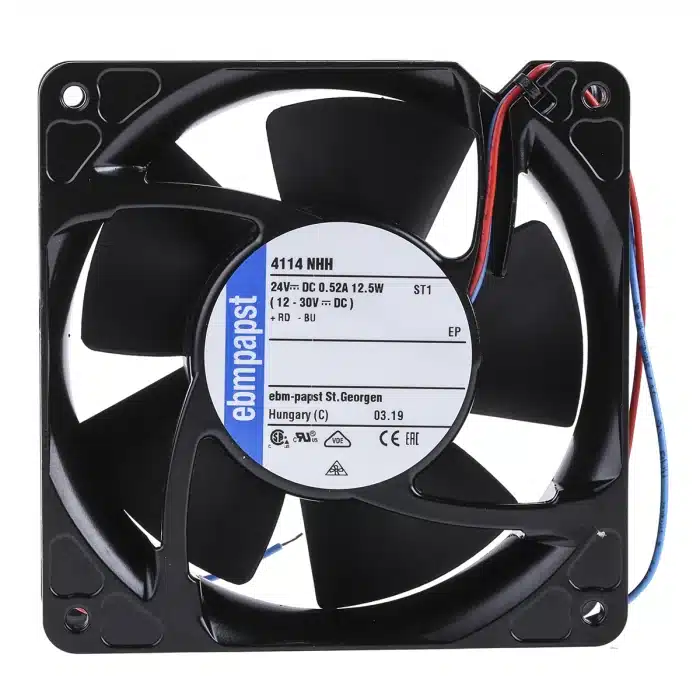

Ebm Papst 4114NHH Axial Fan

Ebm Papst 4114NHH Axial Fan

Ebm Papst 4114NHH Axial Fan

Product Description :

• It also known as a propeller fan, is a type of fan that moves air in a direction parallel to its rotating axis.
• The design of an axial fan involves blades or impellers mounted on a central hub, similar to an aircraft propeller.
• When the blades rotate, they create airflow by pulling air in along the axis of rotation and then pushing it out in the same direction.

• An Axial Fan is a high-performance mechanical device designed to move air or gases efficiently along the axis of the fan, providing optimal ventilation, cooling, or exhaust in industrial, commercial, and HVAC applications.

• Axial fans are widely used in air conditioning systems, cooling towers, engines, electronics enclosures, and industrial machinery to ensure consistent airflow and temperature control.

• Constructed with durable blades and high-quality motor components, axial fans deliver reliable, energy-efficient, and long-lasting performance.

• Their design ensures minimal noise, smooth operation, and high airflow capacity, making them suitable for demanding environments and continuous operation.

Product Specification:

• DC Axial Fan, 24 V, Square, 119 mm, 38 mm, Ball Bearing, 152.9 CFM
• Supply Voltage VDC: 24V
• Fan Frame Type: Square
• Fan Frame Size: 119mm
• External Depth: 38mm
• Bearing Type: Ball Bearing
• Air Flow – CFM: 152.9CFM
• Noise Rating: 60dBA
• Power Rating: 15.5W
• Rated Speed: 5000rpm
• Power Connection Type: 2 Lead Wires
• IP Rating: IP20
• Air Flow – m3/min: 4.334m³/min
• Product Range: 4100N
