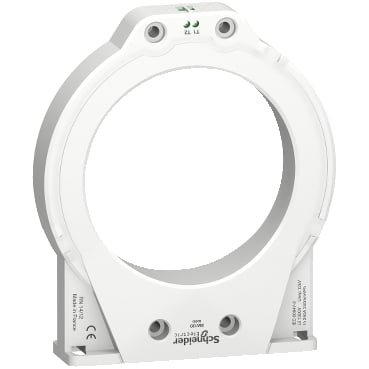

Schneider Electric 50440 Closed Toroid
Schneider Electric 50440 Closed Toroid
Product Description :
- It typically refers to a toroidal core used in electrical and magnetic applications, such as transformers, inductors, and magnetic loops. It is a closed-loop, doughnut-shaped structure made of ferromagnetic material.
- The closed-loop shape ensures that the magnetic field is confined within the core, minimizing leakage and improving efficiency.It Typically made of ferromagnetic materials like ferrite, powdered iron, or silicon steel.
Product Specification :
| Transformer ratio | 1/1000 |
|---|---|
| network type | AC/DC |
| Network frequency | 45…440 Hz |
| [Icw] rated short-time withstand current | 85 kA for 0.5 s |
| Residual short-circuit withstand current | 85 kA / 0.5 s conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 1000 V |
| overvoltage category | IV |
| [Uimp] rated impulse withstand voltage | 12 kV |
